Price List for AD24QS, DA24QS, 2ChPre and Options

Return to "24 Bit / 192 kHz Audio Converters"

All kits come without enclosure.

Kits

Kit		Description		Includes / Excludes		One Kit		Each Additional Kit
AD24QS-K		Analog-to-Digital converter - 24 bit, 16 - 192 kHz (quad speed) - unbalanced RCA inputs		Full kit with PCB - refer to AD24QS-K BOM - without enclosure - without balanced inputs - without AES-3 output		96.- €		87.- €
XS-AD24		Word Clock synchronisation extension module for AD24QS - 10 sample Rates, 22.05 - 192 kHz - VCXO based		Complete module, fully assembeled and tested - without enclosure		140.- €		-
DA24QS-K		Digital-to-Analog converter - 24 bit, 30 - 216 kHz (quad speed) - unbalanced RCA outputs		Full kit with PCB - refer to DA24QS-K BOM - without enclosure - without balanced outputs - without AES-3 input		133.- €		120.- €
DA24QS-B		Digital-to-Analog converter - 24 bit, 30 - 216 kHz (quad speed) - unbalanced RCA outputs - and balanced outputs		Full kit with PCB - refer to DA24QS-B BOM - without enclosure - without XLR jacks - without AES-3 input		144.- €		130.- €
DA24DS-K		Digital-to-Analog converter - 24 bit, 30 - 108 kHz (double speed) - unbalanced RCA outputs		Full kit with PCB - refer to DA24DS-K BOM - without enclosure		89.- €		80.- €
2ChPre and AD24QS-P		Complete preamplifier / ADC set - Fully balanced design - Line and microphone inputs - Phantom supply - Limiter		2 full kits with 3 PCBs - refer to 2ChPre-K BOM   and AD24QS-P-BOM - includes AD24QS-P - without enclosure - without balanced outputs - without AES-3 output		290.- €		-

Options

Option Set		For Device		Includes / Excludes		One Set
Set for balanced inputs		AD24QS-K		1 x 16-pin Micromatch female PCB 180° 1 x 16-pin Micromatch male IDC 30 cm 16 wire ribbon cable Without XLR or TRS jacks!		5.- €
Set for AES-3 output		AD24QS-K AD24QS-P		Transformer 2 x 56R Connectors (IDC) Without XLR jack!		5.- €
Option "Flagship" Chip Set		AD24QS-K AD24QS-P		CS5381-KSZ instead of CS5361-KSZ 4 x LM4562NA instead of 4 x OPA2134PA		34.- €
Set for AES-3 input		DA24QS-K DA24QS-B		Transformer 110R, 100n Connectors (IDC) Without XLR jack!		5.- €
Set for balanced line outputs		2ChPre		Connectors (IDC) Resistors Capacitors Without XLR or TRS jacks!		7.- €
Option "Improved Line Input Performance"		2ChPre		4 x LM4562NA instead of 4 x OPA2134PA		12.- €
Set enlosure SG 206 BO (QS)		AD24QS-K DA24QS-K		Enclosure SG 206 BO (opal green lacquered) 4 Mounting Elements 5.60.422 + 8 screws Front and rear panel are unworked, i.e., they are neither milled nor engraved!		23.- €
Set enlosure SG 206 BO (DS)		DA24DS-K		Enclosure SG 206 BO (opal green lacquered) 4 Mounting Elements 5.60.723 + 8 screws Front and rear panel are unworked, i.e., they are neither milled nor engraved!		23.- €

XLR jacks: 6.- Euro each (Neutrik, female: NC3FD-L, male NC3MD-L).

Front and rear panels milled and engraved: Ask, but it will be cheaper when you order them yourself.

Special Parts

Please note: Actually I am not prepared to sell single parts. I bought and stock many of them in quantities just sufficient for the kits I schedule (or a few more as spare parts and for myself). Also I cannot buy many parts singly at reasonable prices or in small quantities at all. I.e., to sell them could become a little or even very expensive for you (or for me). On the other hand: That does not apply to all components, e.g., I had to buy too many of some components, and I'd like to get rid of them. Please ask if you need something.

The following list is neither complete nor does it guarantee that I currently have these parts sufficiently in stock to sell them singly!

Part	Description	Price (€)

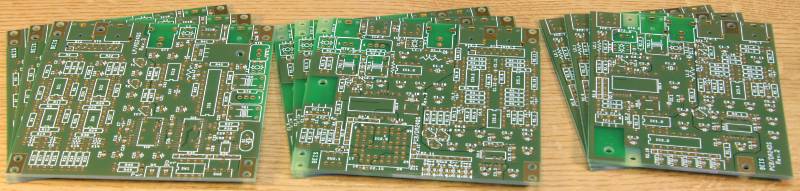

LP/AD24QS	PCB for AD24QS	25.-
PCB/DA24QS	PCB for DA24QS	25.-
PCB/DA24DS	PCB for DA24DS	20.-
GAL16V8A-25QP	GAL for the AD24QS, programmed	5.-
EPM3064ALC44-10N	CPLD for the DA24QS, programmed	6.-
PCB/2ChPre	Set of 2 PCBs for 2ChPre	55.-
CS5361-KSZ	ADC, 24 Bit, 192 kHz, 114 dB, SO24	10.-
CS5381-KSZ	ADC, 24 Bit, 192 kHz, 120 dB, SO24	32.-	Currently not singly available
CS8406-CSZ	192 kHz Digital Audio Transmitter, SO28	5.-	Currently not singly available
CS8416-CSZ	192 kHz Digital Audio Receiver, SO28	7.-	Currently not singly available
CS4398-CZZ	DAC, 24 Bit, 192 kHz, 120 dB, TSSOP28	10.-	Currently not singly available
OPA2134PA	Dual Op-Amp, J-FET, 8 nV/Sqr(Hz), DIL08	2.-
LM4562NA	Dual Op-Amp, Bipolar, 2.7 nV/Sqr(Hz), DIL08	5.-
MK2703	PLL Audio Clock Synthesizer, SO08	5.-	Currently not singly available
TOTX177PL	Fibre Optic Transmitter, 5 V, 15 MBit/s	3.-	Replacement TOTX179PL available only
TORX147PL	Fibre Optic Receiver, 3 V, 15 MBit/s	4.-	Replacement TORX141PL available only
PE-65612NL	Digital Audio Transformer, 1:1	3.-
27 MHz Crystal	Case HC-49/US (short)	2.-
25 MHz Oscillator	Case SG645 (5 x 7 mm), 3 V	4.-	Currently not singly available

---

Ordering Boards and Parts

Shipping cost, all inclusive

Letter, not insured, shipping at your risk:

• Germany: 4.00 €
• Europe: 7.00 €
• Others: 11.00 €

Registered mail, insured (not available for all countries, see below):

• Germany: 9.00 € (DHL Paket, Sendungsnachverfolgung möglich)
• Europe: 12.00 € (trackable in some European countries)
• Others: 16.00 €

Insured parcel outside Germany: Between 20.- (most of Europe) and 45.- € (far, far away), and I believe that usually it won't be worth it. But I can do it.

Availability of registered and insured mail:

Amongst others, registered and insured mail is available for:
All members of the EU (except Latvia, Malta and Isle Of Man)
Argentina
Brazil
China (PR)
Japan
New Zealand
Russian Federation
Suisse
Turkey

Others: See this official German Post Office document. It's in German: Try to find your country, then look at the column "Höchstbetrag Wert". If there is a value, registered and insured mail is available. If not, it is not available. For example, it is not available for
Australia (see below, insurance on my risk)
Canada (see below, insurance on my risk)
India
Latvia (see below, insurance on my risk)
South Africa
South America (except Argentina and Brazil)
Taiwan (see below, insurance on my risk)
USA (see below, insurance on my risk)

Registered and insured mail to the US, Canada and other countries is unfortunately not available. Because 60.- € for an insured parcel is much too expensive, I offer to send it for 14.- € plus 8% of the content's value on my risk. For example, the shipment for
One AD24QS-K is 14.- € + 0.08 x 96.- € = 21.70 € and for
One DA24QS-K is 14.- € + 0.08 x 133.- € = 24.60 €.

Widerrufsrecht: Der Käufer hat ein Widerrufsrecht mit einer Frist von zwei Wochen beginnend mit dem Empfang der Ware. Der Widerruf muss keine Begründung enthalten und ist in Textform oder durch Rücksendung der neuwertigen Ware innerhalb von zwei Wochen zu erklären. Zur Fristwahrung genügt die rechtzeitige Absendung an die im Impressum genannte Adresse. Der Käufer trägt die Versandkosten für die Rücksendung.

Buyers outside the EC may have to pay tax (but up to now nobody ever reported that).

You will get an invoice, but without tax. This means: You cannot get tax refund, neither within nor outside Europe!

In case you have questions or want to place an order:

• Send me an e-mail with your questions or your order to (BTW, my first name is Uwe, (pronunciation), and, if you agree, I appreciate to be called so.)
• I'll confirm if everything is available or inform you should not everything be available.
• I ask you to pay in advance, please. You can pay by PayPal or by a SWIFT money transfer. (Credit card is not possible.)
• I have one little request: Before I tell you payment details, please write your address, line by line, exactly as it has to appear on the letter's envelope.
